GUIDELINES

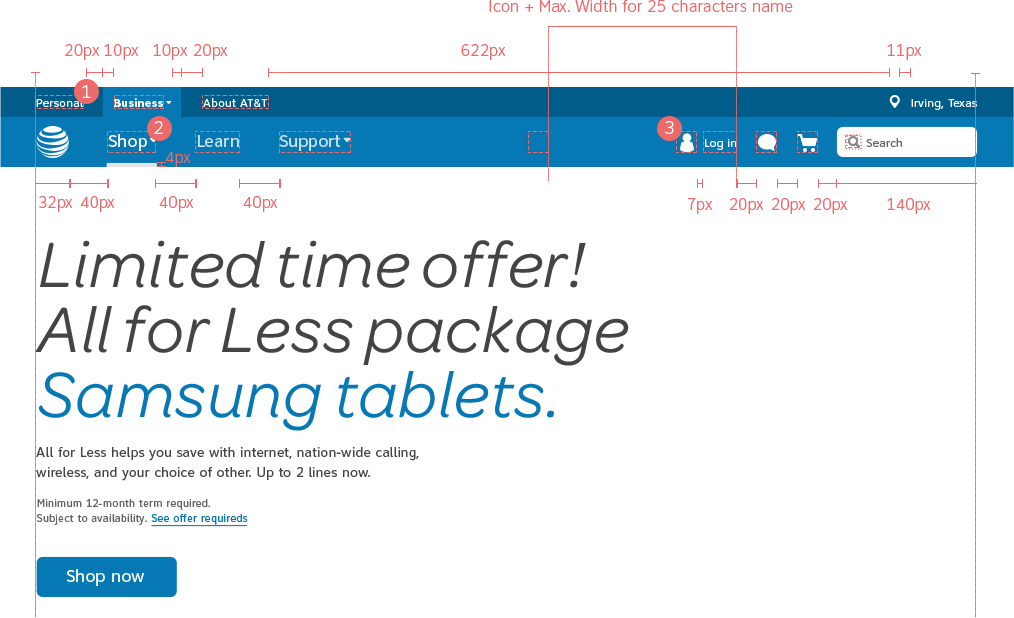

• Global Header always occupies full width of any screen.
• Shop landing page is the home page by default. Menu show with “Shop” selected.
• On hover over “Shop”, the “Wireless” menu flies out automatically.
• “Learn” menu doesn’t have a menu and therefore opens on click.

• Body Copy
  Default state: Clearview Book 12px
  Active state: Clearview Bold 12px
• H4 - Clearview Book 18px
  Default: #FFF 80% opacity
  Active and Hover: #FFF 100% opacity

• Text: Clearview Book 12px.
  Icon: 20px total size.

  Default state: #FFF 100% opacity
  Hover state: #FFF 80% opacity

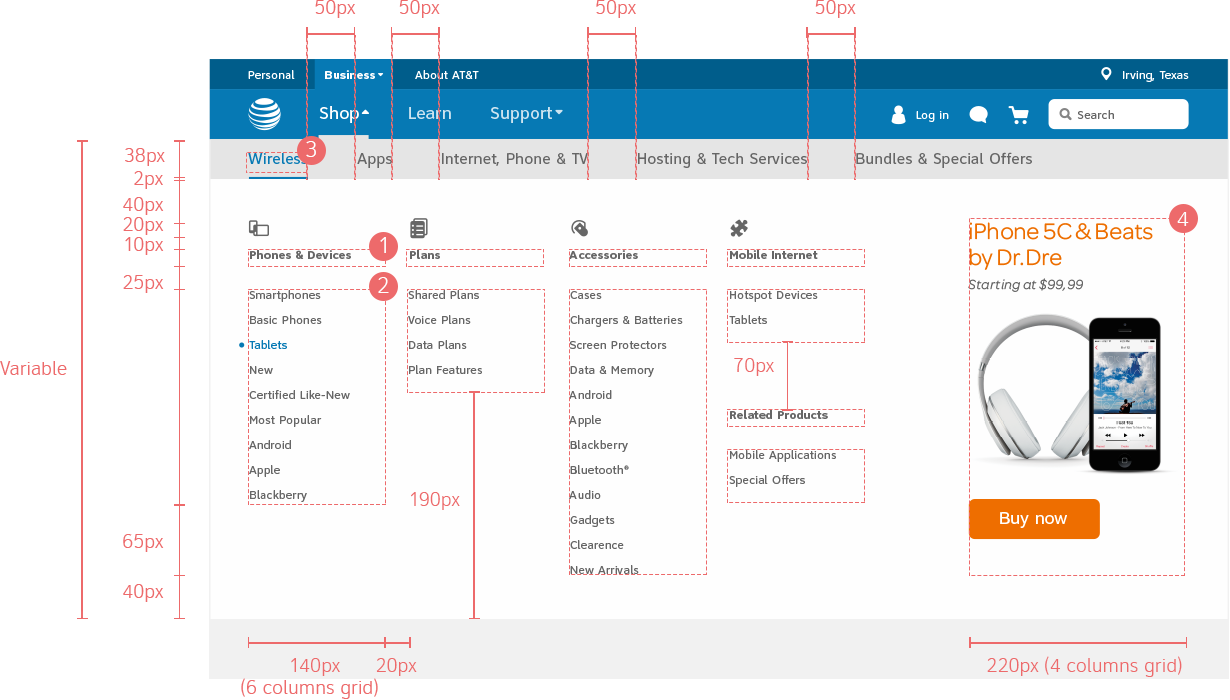

WIRELESS MENU

GUIDELINES

GUIDELINES

GUIDELINES

• Sticky Bar is white #FFF with 95% opacity.
• Button has center alignment relatively to the Bar.

• Variable text style depending on number of characters.

GUIDELINES

• Option 1: from 1 to 30 characters
  Omnes Regular 24pt
  Maximum of 30 characters, 2 lines of text, in a 170px width text box. Break line when appropriate.

GUIDELINES

• Option 2: more than 30 characters
  Down-scale to Clearview Book 18pt.
  Maximum of 40 characters, 2 lines of text, in a 170px width text box. Break line when appropriate

GUIDELINES

• Option 3: more than 40 characters
  Down-scale to Clearview Book 14pt.
  Maximum of 70 characters, 3 lines of text, in a 170px width text box. Break line when appropriate

GUIDELINES

• Option 4: more than 85 characters
  Down-scale to Clearview Book 12pt.
  Maximum of 85 characters, 3 lines of text, in a 170px width text box. Break line when appropriate

GUIDELINES

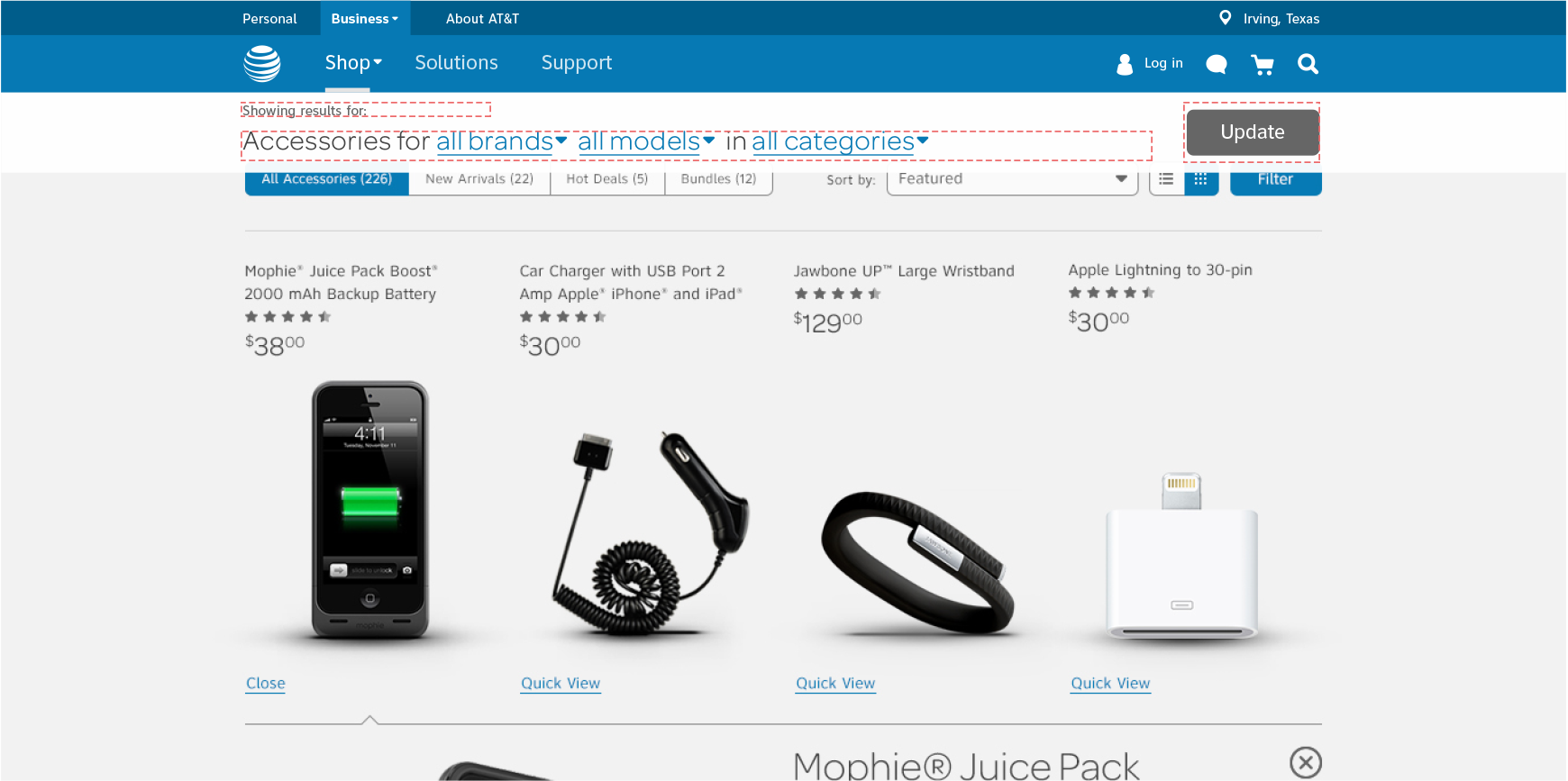

• Natural Language Form only:
  Omnes Regular 24pt.
  Up to a maximum of 3 input fields.
  Maximum of 80 characters, 1 line of text, in a 800px width text box.

GUIDELINES

• Natural Language Form + other content:
  Down-scale o Clearview Book 14pt.
  Up to maximum of 3 input fields.
  Maximum of 85 characters, 2 lines of text, in a 300’x width text box.

GUIDELINES

MODULE 3

MODULE 4

GUIDELINES

• First tab is always opened by default.
• Tabs don’t have a close option.
• Maximum of 6 columns when, with 140px width each, tabs have icons. Columns can be combined.
• Tabs background should be #FFF.

• Promo header 4, maximum of 22 characters with 2 lines of text. Break line when appropriate.
• 70 px Icon, vertically center aligned to a 140 px colum.

GUIDELINES

• Header should have a maximum of 52 characters, 2 line of text in a 300px width text box. Break line when appropriate.

GUIDELINES

• Header should have a maximum of 84 characters, 2 line of text in a 460px width text box. Break line when appropriate.

GUIDELINES

• Header should have a maximum of 38 characters, 2 line of text in a 220px width text box. Break line when appropriate.

GUIDELINES

• Header should have a maximum of 84 characters, 2 line of text in a 460px width text box. Break line when appropriate.

GUIDELINES

• General alignment should be centered.
• The tab alignment should be centered in the column as well as the text box.

GUIDELINES

• Column width is mantained and centered to the screen. Padding between columns is fixed - 20px.

GUIDELINES

• Text and icon in hover blue (#0091DA).

GUIDELINES

• Background of active tabs must have #F2F2F2 color.
• Any link regarding the tab's subject should be included inside the tab content area.

GUIDELINES

• Keep 40px padding until tabs don’t fit. Then down-scale the padding 10px successively.

GUIDELINES

• User activated inline help: This system allows users to access help text only when they want and need it. To reveal the text the user needs to click on a trigger which is represented by an icon.
• Length: Help text should be short and easy to read, so it’s not advisable to exceed 100 words, as it gets to much information for users to handle.
• Tooltips: Should only appear to explain the user why a particular information is needed, when unfamiliar data is asked or to assure that users’ info is secured.
• Iconography: Tooltip icon should be placed next to the field label and not the input field. Upon click, the tooltip should appear above its icon. This will prevent shifting content and leave users disoriented.

• Help text: Avoid the idea of an instruction manual using help text next to fields sparingly. Use help text only when unfamiliar data is asked of users. Make it short and easy to read.
• Accessibility: Tooltips can be activated on click or using the TAB key and closed by clicking outside the box or pressing the down key on the keyboard.
• The forms should be grouped when necessary to organised information from the same “category”.
• Each category should be divided by a line with 50px of padding between the top item and the bottom item. If it’s section title, use 70px from divider to baseline.
• When necessary use information icon which will trigger tooltips.

• When needed, radio buttons and checkboxes can be stacked into columns, as long as they respect the Style Guide for Grid System.
• Call-to-Action button must be left justified with the form, highlighting a clear path to completion.
• Call-to-Action button should be active only when all required fields are filled.

GUIDELINES

• In some cases it’s useful for users to have suggestions of valid information to input on the fields. These suggestions would appear as users are typing the first words.

Valid

• Happens when users insert valid information. This message is momentary and lasts 2 seconds. No copy message required, the positive feedback is implicit.

Warning

• Appears after users pass by an important field without filling it. This box pushes the conten down. This can also happen in cases when users don’t insert the a valid answer - incorrect email structure for example.

Specific error

• “Specific” error messages refer to at least 2 errors that occurs in specific input fields. Appears after users click the primary action button on the form. This is a backend validation message. This box pushes the content down the page. Alignment depends of available screen real-estate.

Generic error

• When filling a form if more than 3 fields have an error than it’s considered generic. Those error messages are displayed in a single column next to the fields in order to avoid obstruct the legibility of the form. This makes the layout less aggressive.

GUIDELINES

• Has title;
• May or may not have secondary information;
• Does not have a section information;
• Fields are stacked with labels left justified;
• Validation is either inline or to the right of the form, depending on error type;
• Action button is left justified followed by “Cancel” or “Quit Action”

GUIDELINES

• Has title;
• Has section information;
• Validation is either inline or to the right of the form, depending on error type;
• Action button is right justified with “Cancel”/“Quick” or “Back” to the left.

In Multistep flow with Terms and Conditions:

• Has title;
• May or may not have section information;
• Fields are stacked with labels left justified;

• Validation should be inline and not dependent upon a column being free for validation messages;
• Action button is right justified with “Back”/“Cancel” to the left;
• T&Cs should open in a new page;
• T&Cs should not be part of a step-tracker;
• No generic “Back” button on T&Cs page - you’ve already exited the flow, reviewed selections and summary and passes the point of editing content.

Product Details

Quick Catalogue

GUIDELINES

• Pagination is always placed at the bottom of the page and Always aligned to the center of the content that has the listing. When centering the UI, it should always be considered all the elements exposed.
• Views per page always on top of the page.
• If users customize the display to view all items, respect that preference.

• When transitioning "grid view" to "list view" maintain same page, same views per page, and same products beeing displayed.
• Always aligned to the center of the content that has the listing. When centering the UI, it should always be considered all the elements exposed.

GUIDELINES

• Preferably aligned on top of content and to the right side of the page.
